RA-915M / PYRO-915+

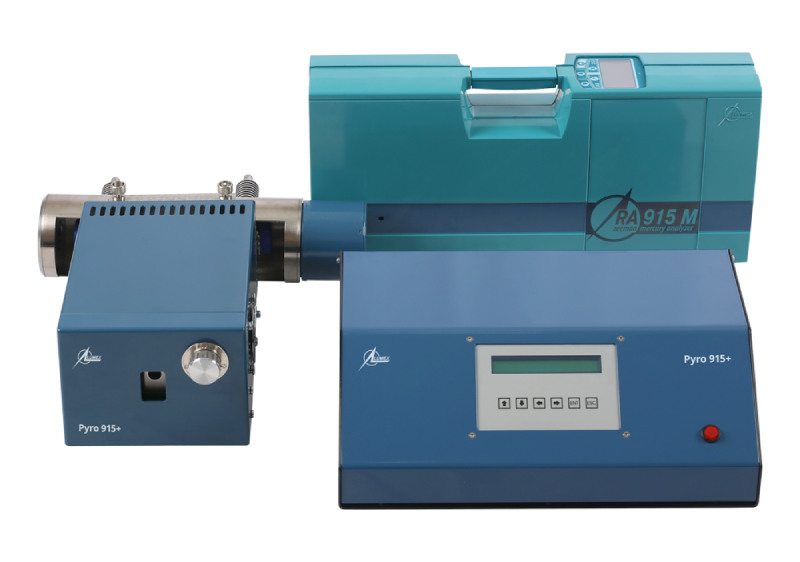

RA-915M mercury analyzer with PYRO-915+ thermal decomposition attachment
RA-915M with PYRO-915+ attachment is a versatile tool for fast direct analysis of all kinds of solid, liquid, and biological samples from ppb level. Even the complex-matrix samples are analyzed ‘as is’ without pre-treatment. No reagents or compressed gases are required. The routine analysis takes 1–2 min.
RA-915M / PYRO-915+
RA-915M with PYRO-915+ attachment is a versatile tool for fast direct analysis of all kinds of solid, liquid, and biological samples from ppb level. Even the complex-matrix samples are analyzed ‘as is’ without pre-treatment. No reagents or compressed gases are required. The routine analysis takes 1–2 min.
Programmable PYRO-915+ furnace enables optimal samples decomposition and study of the mercury thermospecies having various binding energy with a sample matrix.
Direct thermal decomposition technique meets national and globally accepted standards such as ASTM D6722, D7622, EN/TS 17286, US EPA 7473, 30B, PS12B, SN/T 4429.2-2016, HJ 923-2017, and others.
RA-915M analyzer can be used separately for real-time mercury measurement in ambient and indoor air. Other Lumex Instruments attachments are available to extend RA-915M functionality (RP-92 for Cold Vapor technique, RP-91NG for direct analysis of hydrocarbon gases).
Direct thermal decomposition followed by atomic absorption spectrometry at 254 nm wavelength with Zeeman correction for background absorption makes interference-free measurements easy and quick. The technique ensures the most selective and sensitive analysis without matrix effects.
- Direct and fast analysis of solids, liquids, and biosamples
- Broad measurement range: more than 5 orders of magnitude
- Low limit of detection and highest selectivity due to Zeeman background correction
- No need for sample pretreatment and reagents reduces analysis cost
- Safe and simple operation: no compressed gases (oxygen or argon), air is used as a carrier gas
- No pre-concentration on gold traps increases analysis speed and reduces exploitation complexity
- No memory effect: a sample with low mercury concentration can be analyzed immediately after a high mercury sample
- Programmable furnace for optimal sample decomposition and mercury thermospeciation study
- Portable RA-915M analyzer enables lab and ambient air monitoring
- Low running and maintenance costs
The RA-915M mercury analyzer with PYRO-915+ attachment is used for the direct determination of mercury concentration in:
- soils, sediments;
- rocks, ores, minerals;
- crude oil, oil products, naphtha, petrochemicals;
- coal, coke, fly ash, gypsum;
- sorbent traps for flue and hydrocarbon gases;
- passive air samplers;
- waste waters, wastes, sludge;
- food, nutritional additives, animal feedstuff;
- biosamples: tissues, hair, urine, blood, etc.;
- drugs and cosmetics;
- plastics, fertilizers, and many other materials.
The standalone portable RA-915M is used for background air monitoring, mercury surveys including continuous measurements from vehicles, indoor and outdoor pollution detection and mapping, demercurization control, occupational health and safety, geochemical exploration, etc.
RAPID is an efficient and intuitive software designed for the operation of RA-915M mercury analyzer with PYRO-915+ attachment. RAPID software fully complies with FDA 21 CFR Part 11 requirements.
It provides:
- data acquisition, processing, and reporting;
- real-time visualization of selective and non-selective absorbance;
- databases for calibrations, processing and storage of measurement data;
- adjustable modes for optimal thermal decomposition of any specific matrices.
Automatic closed-loop temperature control extends the measurement range and ensures no data loss during analysis of complex-matrix samples or highly contaminated samples. RAPID’s thermoscanning function gives additional information about mercury speciation in samples.
RA-915M mercury analyzer with PYRO-915+ attachment is covered by a full 1-year warranty.
Upon request installation and commissioning of the equipment can be carried out at customer’s site by our service engineers or by certified distributor. Support and training of operators, meeting customer’s specific needs, are provided by highly qualified application specialists.
| Measurement principle | Direct Thermal Decomposition followed by atomic absorption spectrometry at 254 nm with Zeeman correction of background absorption |
| Detection limit | 0.5 ppb (μg/kg) |
| Measurement range | 0 – 200 000 ppb (μg/kg) |
| Sample boat capacity | 1000/2000 mg 500/1000 µl |
| Analysis time | 1 – 5 min |
| Analyzer warm-up time, not more than | 40 min |
| Temperature range of atomizer and analytical cell | 150 °C – 800 °C |
| Power supply | 100 – 240 VAC 50 – 60 Hz |
| Power consumption, not more than | 35 W (RA-915M analyzer) 700 W (PYRO-915+ attachment) |
| Dimensions (WxDxH) | 470x220x110 (RA-915M analyzer) 430x340x135 mm (PYRO-915+ thermal unit) 400x280x135 mm (PYRO-915+ power supply unit) |
| Weight | 7 kg (RA-915M analyzer) 17.5 kg (PYRO-915+ attachment) |
DETECTION LIMITS
| Matrix | Detection limit |
| Soils, rocks, sediments | 0.5 ppb (µg/kg) |
| Water and solutions | 0.2 ppb (µg/L) |
| Foodstuff | 0.5 ppb (µg/kg) |
| Biological samples (tissues, blood, hair, etc.) | 0.5 ppb (µg/kg) |
| Crude oil, gas condensate | 1 ppb (µg/kg) |
| Naphtha direct | 1 ppb (µg/kg) |
| Naphtha preconcentration | 0.05 ppb (µg/kg) |
| Coal | 1 ppb (µg/kg) |
| Sorbent traps for stack gases | 0.5 ng* |
| Ambient air (direct analysis with RA-915M) | 0.5 ng/m3 |
| Natural gas (using amalgamation method) | 1 ng/m3 |
* range 0.5 - 50,000 ng
